Steel is one of the most widely used materials, particularly in construction and engineering and in the manufacture of cars. It is estimated that there are over 20 billion tonnes of steel in use, equivalent to well over 2 tonnes for every person on Earth.

Steels are alloys of iron, carbon and other metals and non-metals.  The composition of the steel is adjusted so that it has the precise properties needed.

The term alloy steel is confined to steels containing some combination of one or more of the following elements: nickel, chromium, tungsten, molybdenum, vanadium, manganese, cobalt, copper, niobium, zirconium, selenium and lead.

Steels can be repeatedly recycled without any loss of performance.





Uses of steel

The construction industry is a main user of steel, from small buildings to huge bridges, and uses it in multiple ways, even within a single construction.  A bridge, for example, might use steel in the huge suspension ropes, the steel plate flooring for the road, the beams for the columns, and for the safety barriers and lighting columns.

Much steel is also used to reinforce concrete.

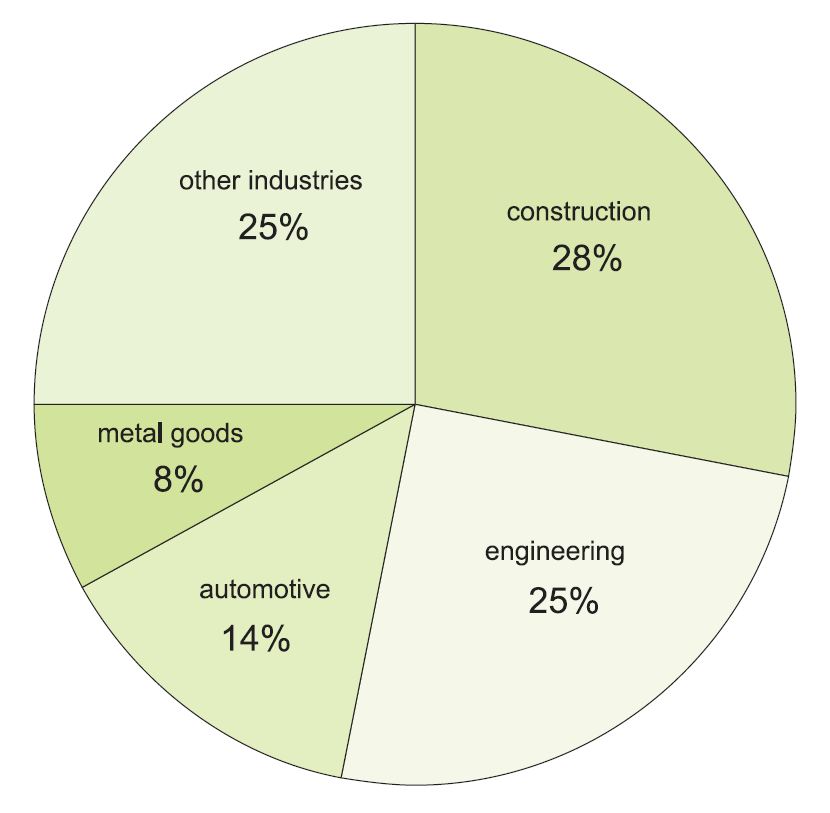

Figure 1  Uses of steel in the UK.

Chromium increases the corrosion resistance of steel, and a minimum of 12% chromium is necessary to produce a stainless steel.  The best known of the stainless steels contains about 74% iron, 18% chromium and 8% nickel (known as 18-8 stainless). Stainless steel is perhaps most familiar as kitchenware (sinks, kettles and cutlery).

Figures 2 and 3  Both these structures used about 45 000 tonnes
of steel in their construction.

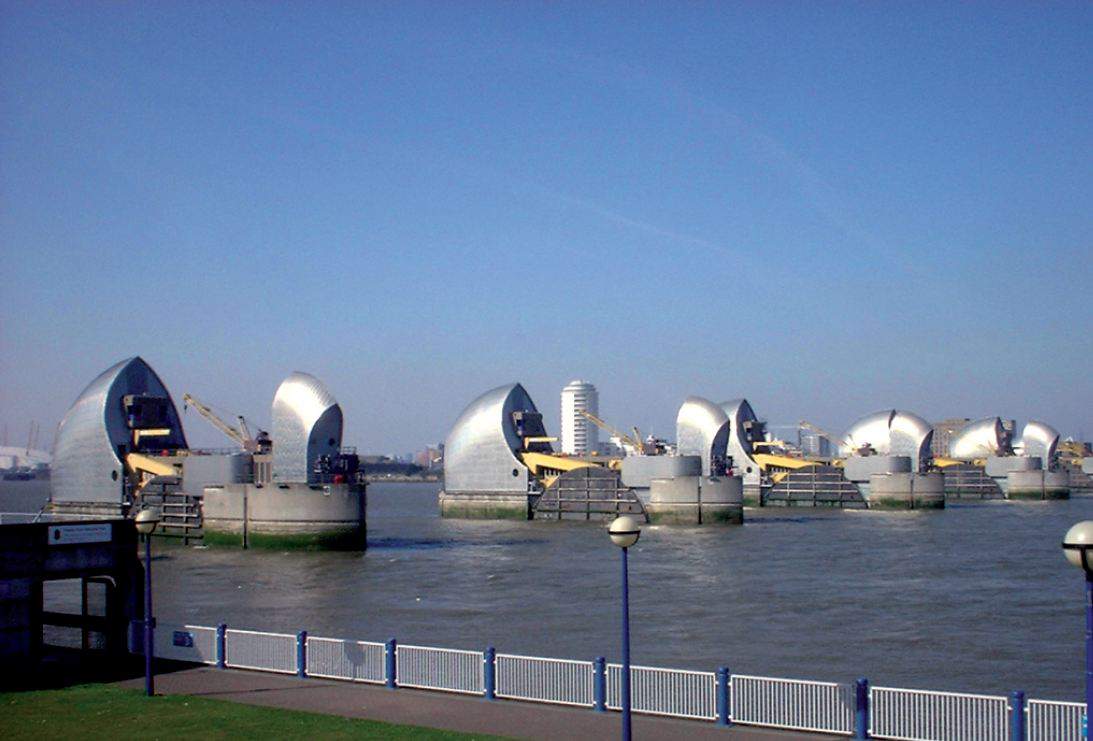

Figure 2 is the barrier across the River Thames, to protect London I from flooding.   It is a system of stainless steel plated hollow flood gates.
By kind permission of Peter Trimming.

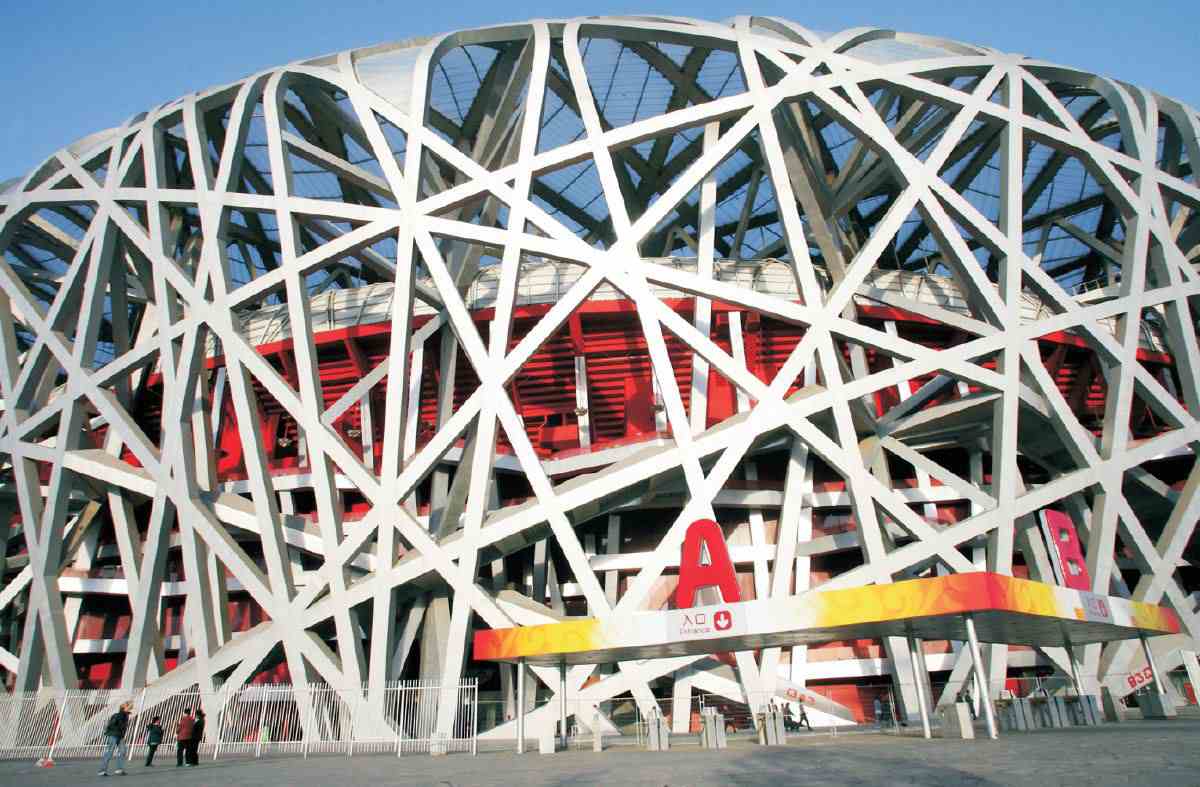

Figure 3 is the interwoven structure of the Olympic Stadium in Beijing made of steel plate. Unwrapped, the I strands of the 'Bird's Nest' would stretch for 36 km.
By kind permission of World Steel Association.



Steels used in such large constructions are often produced from iron which has been treated with molten magnesium to remove sulfur.



Steels containing molybdenum, vanadium, chromium and tungsten in various combinations produce very hard, if brittle, steels.  These are used, for example, in drill bits which need to retain a cutting edge.  Steels are used widely in the manufacture of electrical motors, power generators (nuclear, conventional fuels and wind), gears and engines, which have to be very tough and withstand high temperatures.

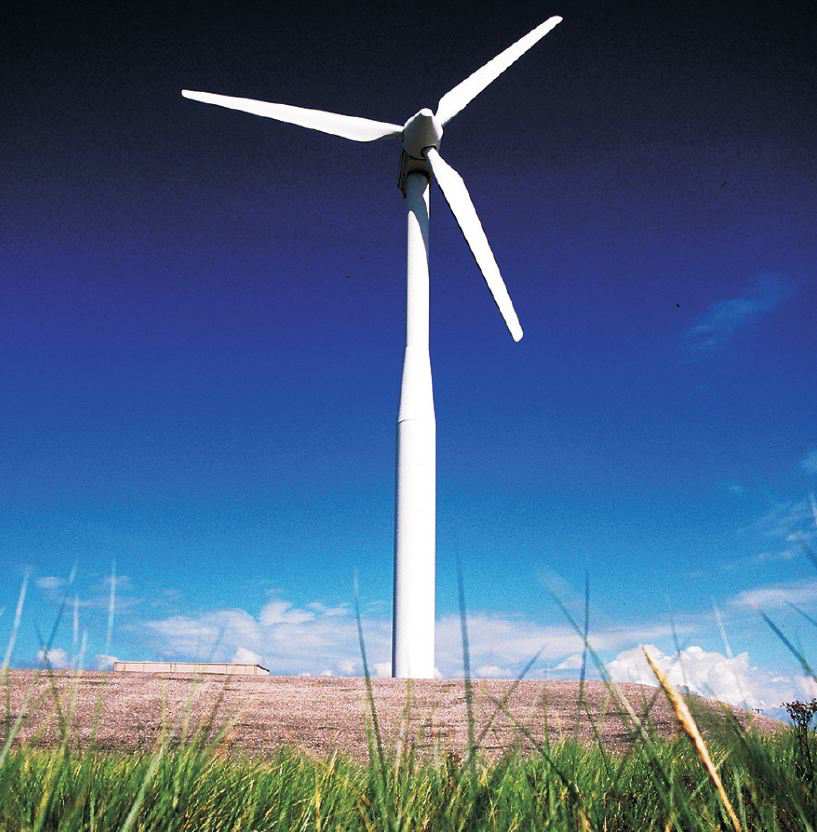

Figure 4  A wind turbine constructed from steel.
By kind permission of World Steel Association.

Steels with cobalt are used as magnets and those with nickel are used in the construction of nuclear reactors.

There is a group of steels known as Advanced High Strength Steels, AHSS, which are specially treated steels that can be rolled very thin without losing the element of strength needed for the specific purpose.  They are particularly useful in the manufacture of cars, helping to reduce the overall mass and thus decrease fuel consumption.

Steels with a thin coating of tin are used to make cans for beverages and food. Steels coated in various ways with zinc are used in roofing, for example, and in cars as the zinc gives protection against rusting.

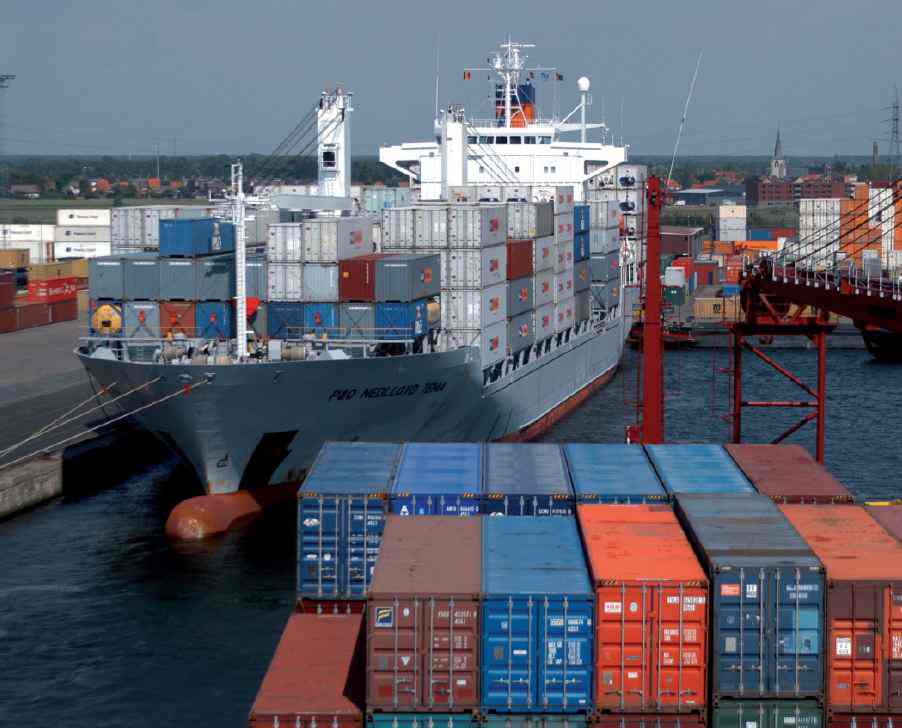

Figure 5  The container ship and the containers are both constructed from steel plate.
By kind permission of World Steel Association.



Annual production of steel

World 1621 million tonnes
China 804 million tonnes
Japan 105 million tonnes
India 89 million tonnes
U.S, 79 million tonnes
Russia 71 million tonnes
Korea 70 million tonnes
Germany 43 million tonnes

Data from:
World Steel Association, 2016

Manufacture of steel

There are two main processes used to make steel.  The Basic Oxygen Steelmaking Process, which is used for the majority of steel production, uses iron freshly produced from the blast furnace together with some scrap steel.  The Electric Arc Furnace Process uses scrap steel only.

The Basic Oxygen Steelmaking Process

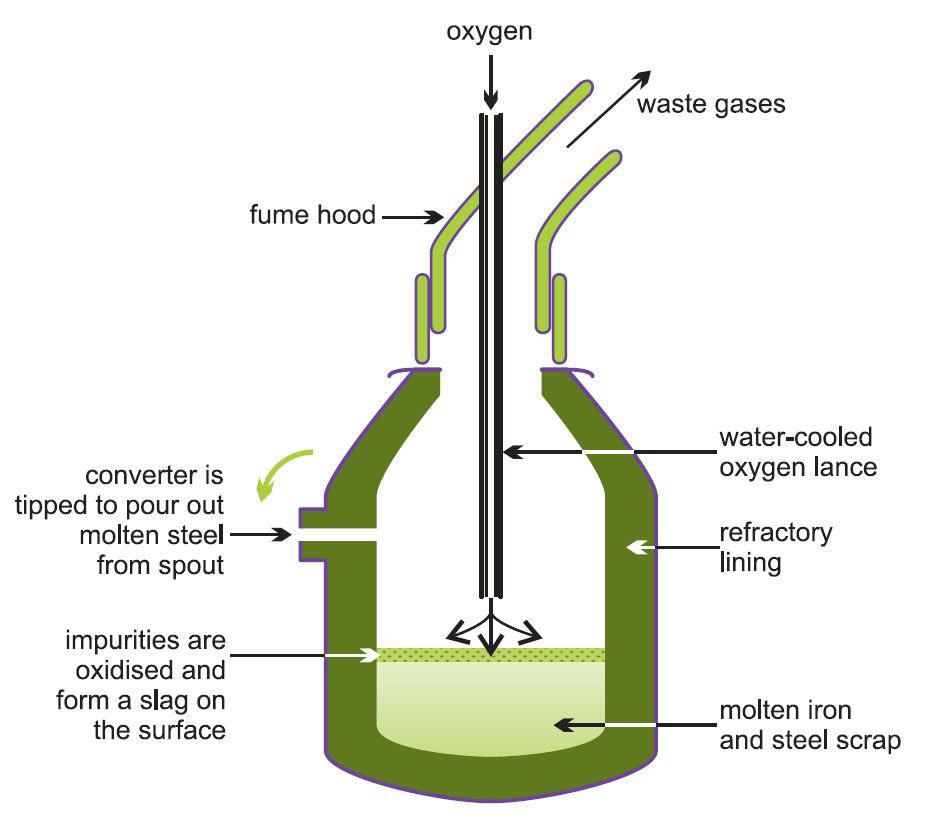

Figure 6  IIllustrating the Basic Oxygen Steelmaking (BOS) Process.  The process uses modern furnaces lined with special bricks containing 90% magnesium oxide and 10% carbon. These can take up to 350 tonnes of reactants and convert them to steel in less than 40 minutes.

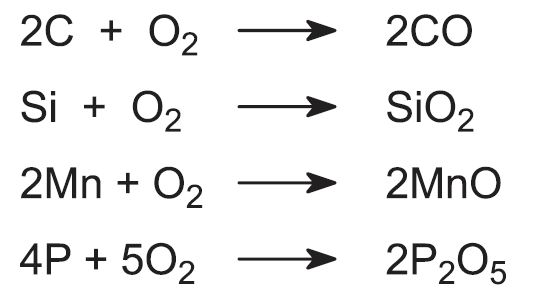

The furnace (also known as a converter or vessel) is charged with steel scrap (up to about 30%) and molten iron from a ladle. An oxygen lance, cooled by circulating water, is lowered into the furnace and high purity oxygen is injected into the vessel at twice the speed of sound which ensures that all the impurities are converted into their oxides.  The main chemical reactions are:

With the exception of the carbon monoxide, the products react with lime, added during the oxygen blow, to form a slag.

The above reactions are all exothermic and controlled quantities of scrap are added as a coolant to maintain the desired temperature.

The steel at this stage contains ca 0.04% carbon.

The Electric Arc Furnace Process

Steel scrap is first tipped from an overhead crane into a furnace.  The scrap comes from three sources:

  • Home scrap: excess material from steel works and foundries.
  • Industrial scrap: from processes using steel (such as excess steel from making a car).
  • Obsolete scrap: discarded used products (for example, used cans).

Figure 7  Illustrating the Electric Arc Process which uses scrap steel to produce pure steel very efficiently.

The furnace is a circular bath with a movable roof through which three graphite electrodes are raised or lowered.  These electrodes are massive, often 6 m high and 4 m wide, and the furnace can hold over 100 tonnes of liquid steel.

After the steel scrap is placed in the furnace, the roof is put into position and the electrodes lowered into the furnace.  An arc is struck by passing an electric current through the metal. The heat generated melts the scrap metal.  Lime (as calcium oxide or calcium carbonate), fluorspar (which helps to keep the hot slag as a fluid) and iron ore are added and these combine with impurities to form a slag.  When the steel has reached the correct composition the slag is poured off and the steel tapped from the furnace.

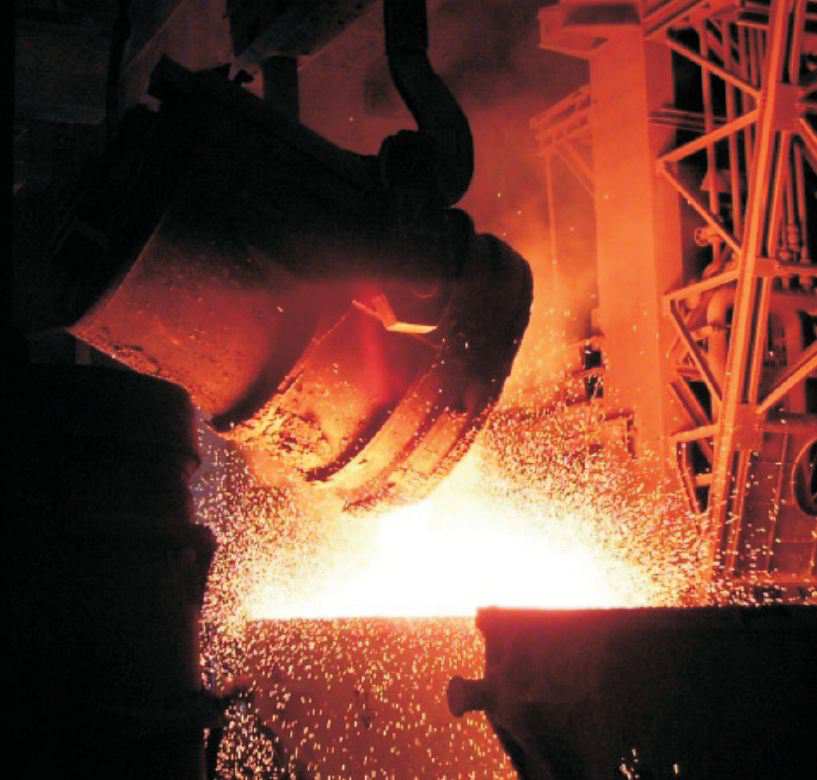

Figure 8  The liquid steel is tapped (poured) into a ladle and the slag is tapped into a separate 'slag pot'.  This photo shows a later stage when the molten slag is poured from the slag pot.  The slag is treated so that any iron left is recovered and the residue is then used as an aggregate.
By kind permission of World Steel Association.

Secondary steelmaking

The term secondary production is often used when referring to recycling. However, in steelmaking the term secondary steelmaking refers to the production of steels which are needed for specific purposes and which require the addition of very carefully controlled quantities of other elements.

Molten steel from either process is transferred to a ladle where the alloying elements are added.
The process provides precise control of harmful impurities (particularly sulfur, phosphorus and, in some cases, trace metals and hydrogen) by adding materials via ladle injection. For example, aluminium and silicon are added to reduce any oxidized material.

Other techniques used to help to improve the quality of the steel include stirring (ladle stirring) and applying a vacuum to the steel to remove gases (vacuum degassing).

Casting

Steel is produced in three forms, the form chosen being dependent on its ultimate use:

  • as a slab, a long thick piece of metal with a rectangular cross-section
  • as a bloom, a long piece of metal with a square cross-section
  • as a billet, similar to a bloom but with a smaller cross-section.

Most steel is continuously cast to the desired shape, but a small quantity (ca 10-20%) is first cast into ingots which are cooled and then worked on to produce the shape required.

The casting is a very precise set of processes.  The following descriptions are an outline.

Continuous casting

In continuous casting, the steel, still molten from the furnace, is poured into a water-cooled mould (teeming) from which it emerges as a strand which is solidifying at the surface.  The strand passes through a series of rollers which are water sprayed to produce a solid (a slab, bloom or billet) which is then sent to be hot rolled.

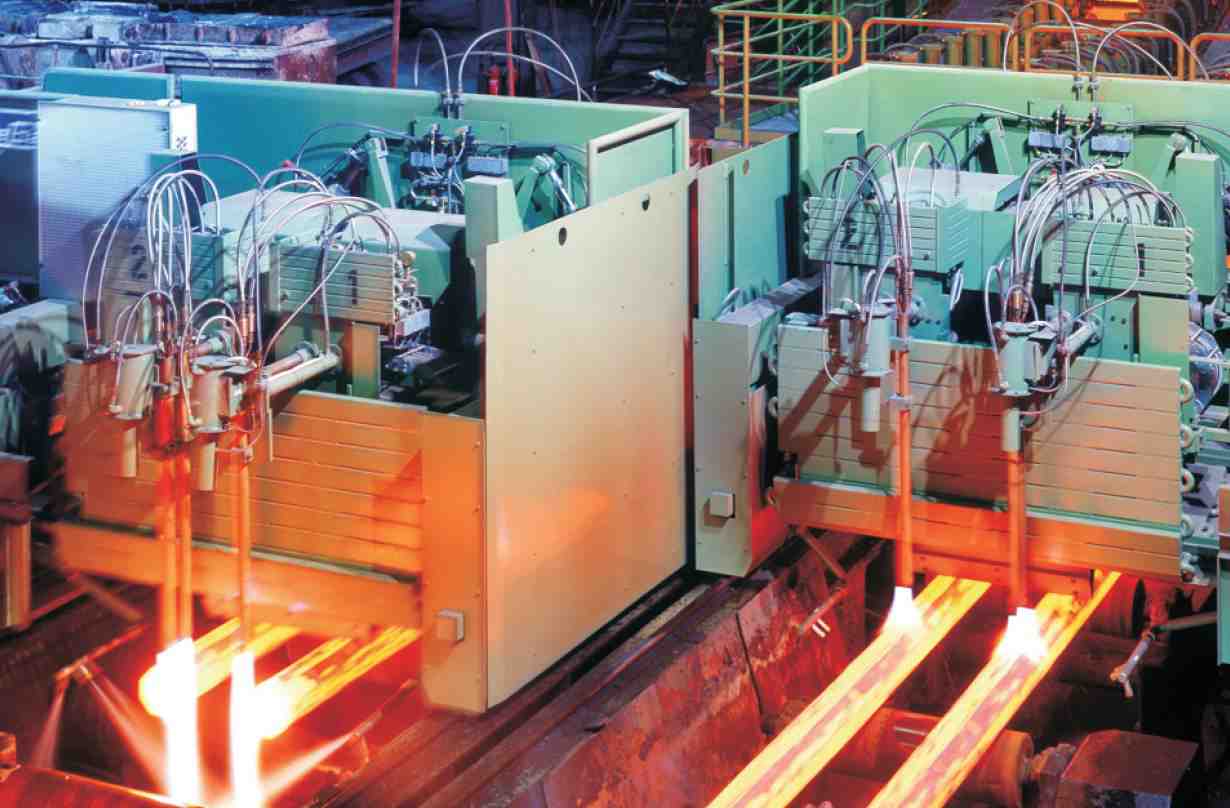

Figure 9  Steel tube is being produced in a continuous casting process.
By kind permission of World Steel Association.

Ingot casting

Molten steel is poured into a cast iron mould to solidify as an ingot.  This generally weighs less than 20 tonnes but rotor forgings can weigh up to 500 tonnes.

When the ingot has solidified, the mould is removed. Each ingot is of carefully pre-arranged dimensions and mass from which articles of the required size can be rolled.

Rolling

Steel products are classified into flat products and long products.  Slabs of steel are rolled to produce flat products, for example steel sheet for the construction of ships.  The sheet is rolled further to produce thinner sheet, used for example in the manufacture of cars.

Blooms and billets are used to roll long bars of steel for construction and for drawing into wires.

Often there are three stages to this part of the process, hot rolling, cold rolling and drawing.

Hot rolling occurs when the slabs, blooms and billets are heated in a furnace until they are red hot (ca 1400 K) and then rolled until they have acquired the desired shape.

The speed at which the hot steel is subsequently cooled is a crucial factor, affecting the strength and other properties of the steel.  Cooling is done by spraying water as the steel passes through the rollers.

During this rolling, oxygen in the air has reacted with the hot iron to form a very thin layer of iron(III) oxide on the surface. It is blue/grey in colour (only when it is thicker does it appear red). This must be stripped from the surface prior to the next stage, otherwise the final product will be susceptible to rusting and unsuitable for galvanizing with zinc and other surface treatments.

The stripping process is known as pickling.  The steel is passed through several baths of hydrochloric acid (sometimes sulfuric acid) which dissolves the oxide without attacking the metal.  The spent acid is recycled.

The 'pickled' steel is then subjected to cold rolling. As the name implies, the steel, following hot rolling, is rolled cold and gradually compressed to the required thickness.  This improves the quality of the surface and also hardens the steel. On annealing (heating the strip very carefully), it can be pressed into shapes without cracking.  Such sheet is used, for example, to press out car bodies.  Steel cans are pressed out with sides and bottoms as a single entity, needing only the top to be fitted after filling.

Very strong wires are produced by cold drawing.

Recycling

The recovery of scrap steel probably constitutes the world's largest scale recycling process.  The scrap is either part of the charge for the Basic Oxygen Process or is the complete charge for the Electric Arc Furnace Process.

About 40% of the iron-containing materials used in steel production are now from recycled sources.  It is estimated that recycling one tonne of steel saves 1.1 tonnes of iron ore, 0.6 tonnes of coal and 0.5 tonnes of limestone, with an overall energy saving of 60-75%.
