Epoxyethane (ethylene oxide, EO) is a colourless gas at room temperature.  The bonds in the ring are easily broken so epoxyethane is very reactive.  This, together with it being made directly from ethene (ethylene), a readily available feedstock, makes it an extremely important intermediate in the manufacture of many useful chemicals.



Uses of epoxyethane (ethylene oxide)

The principal use of epoxyethane is in the production of ethane-1,2-diol, the principal constituent of engine coolants, and in other diols (the glycols), which are used to make polyesters.  These and other chemicals made from epoxyethane are discussed below.

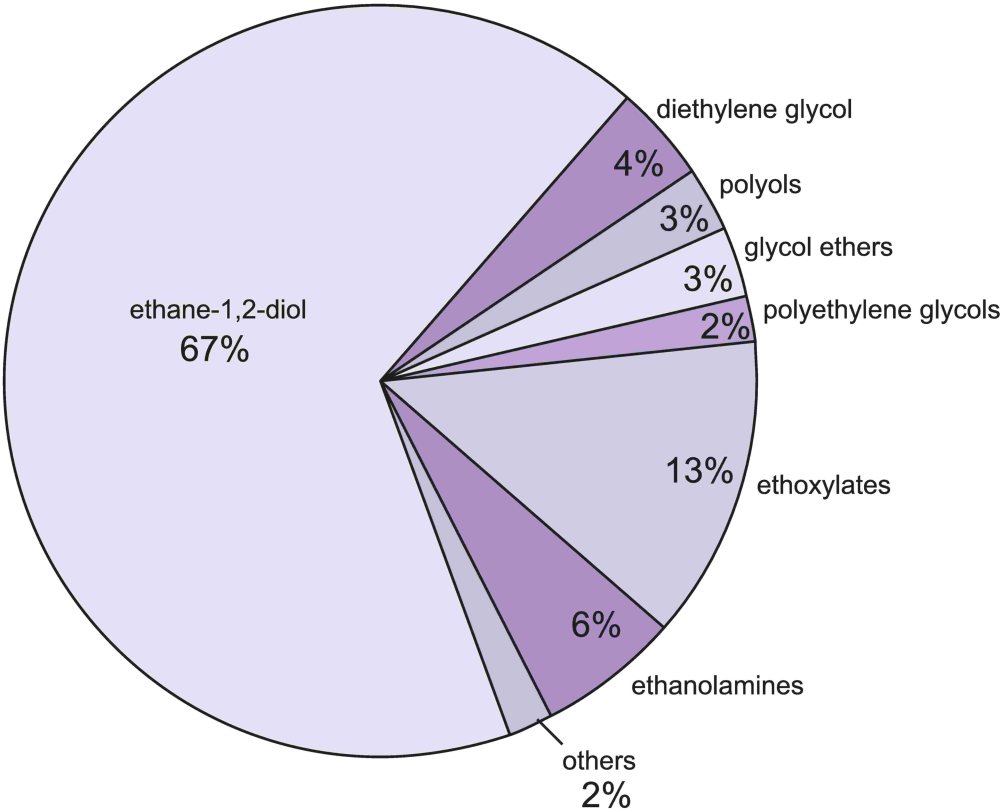

A pie chart illustrating the uses of epoxyethane, that largest being to produce ethane-1,2-diol

Figure 1  Uses of epoxyethane.
Data from many sources including Global Processing, 2016; Market and Research Consulting, 2016.



Figure 1 shows the worldwide uses of epoxyethane by proportion.  But these vary country by country.  For example much less, by proportion, is used in the US to make the diol (41%) and more is used to make glycol ethers (10%), ethoxylates (15%), ethanolamines (16%) and polyethylene glycols (12%).

Annual production of epoxyethane (ethylene oxide)

World 21 million tonnes1,2
Asia 8.4 million tonnes1
U.S. 2.5 million tonnes3

Data from:
1. Market and Research Consulting, 2016.  Figures refer to 2012
2. Expected to reach 26 million tonnes by 2018
3. 2015 Business of Chemistry, American Chemistry Council, 2016

Manufacture of epoxyethane (ethylene oxide)

Ethene is mixed with air or oxygen and passed over a catalyst (finely divided silver on an inert support such as alumina) at 520-550 K and under 15-20 atmospheres pressure (Figure 2).  Two reactions, partial and complete oxidation, take place simultaneously at the catalyst surface.  A small amount of 1,2-dichloroethane is added to the reaction mixture which decreases the unwanted side reaction to carbon dioxide and steam. Residence time in the reactor is 1-4 seconds.

Silver is unique as a catalyst for this reaction but the mechanism is not clear.  The selectivity now being achieved is over 90%. As the catalyst ages, selectivity decreases.  The lifetime of a catalyst is in the range of 2-5 years.

Equations showing the two reactions that can occur between ethene and oxygen.  One is to produce epoxyethane and the other to carbon dioxide and water

Figure 2  Two competing reactions for the oxidation of ethene.
(The enthalpy values are at 523 K and 15 atm.)

Reactions of epoxyethane (ethylene oxide)

Production and uses of ethylene glycols

Epoxyethane is reacted with water under neutral or acidic conditions, to form stepwise a range of products:

Equations showing how epoxyethane can react with water to produce a series of diols

Figure 3  Production of ethylene glycols.

When n = 1, the product is ethane-1,2-diol often known as monoethylene glycol) HOCH2CH2OH, used in engine coolants, in heat transfer fluids, and for production of polyesters such as PET (polyethylene terephthalate).

When n = 2, the product is HOCH2CH2OCH2CH2OH, usually known as diethylene glycol. It is used principally to make polyurethanes and polyesters.

When n = 3, the product is used as a plasticiser.



Figure 4 Ethane-1,2-diol and diethylene glycol, both made from epoxyethane, as well as propanediol, are used to de-ice aircraft prior to take-off in cold conditions.  In this photo, the wings of an Air Canada Airbus A320 are being de-iced.
By kind permission of Alexcaban (Wikimedia Commons).



When n = 4 or more, the product is a poly(epoxyethane), known usually as polyethylene glycol (PEG).  These are classified by relative molecular mass, PEG200, PEG400, PEG600, etc. and are used as nonionic surfactants, synthetic lubricants and solvents for paints.  They are also in cosmetics and are used as plasticisers in adhesives and printing inks.

Production and uses of glycol ethers and polyols

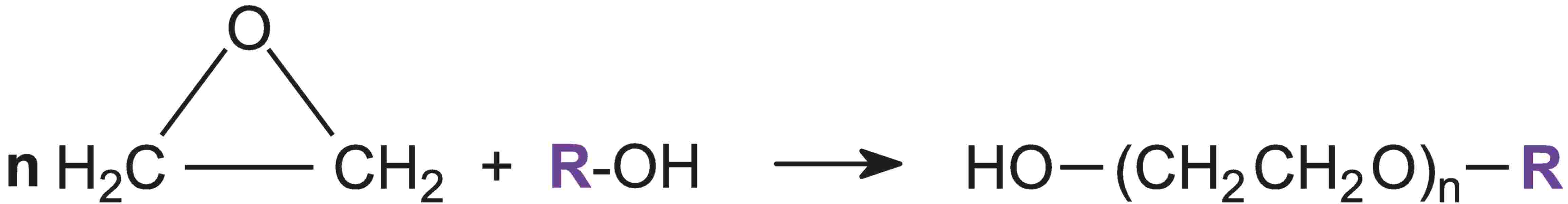

Glycol ethers and polyols are made from epoxyethane by reacting with alcohols:

Glycol ethers produced with n = 1 or 2 and lower relative molecular mass alcohols are used as solvents.  Trivial names are usually used for these ethers.

Ethylene glycol monomethyl ether (methanol + 1 EO) and diethylene glycol monomethyl ether (methanol + 2 EO) are used as anti-icing additives in jet fuels.

Where R is from a longer chain alcohol and n is 3 or more, the products are known as ethoxylates.  Alcohol ethoxylates, produced by reacting a C10 - C15 alcohol
with n = 3 - 10 molecules of EO, are widely used as nonionic surfactants in all manner of cleaning applications. If R is from a diol or triol, the resulting polyols are used to make polyurethanes.

Production and uses of ethanolamines

Ethanolamines are produced from epoxyethane by reaction with ammonia:

Equations illustrating reactions of epoxyethane with ammonia to orm a series of ethanolamines

Figure 5  Production of mono, di and triethanolamine.

They are used in textile finishing, cosmetics, soaps, detergents, gas purification (as bases, they react with, and remove, hydrogen sulfide, carbon dioxide and sulfur dioxide) and corrosion inhibitors.

Diethanolamine is used in a new 'greener' method of manufacturing the herbicide, glyphosate sold, for example, as 'Roundup'.



Date last amended: 6th November 2016
